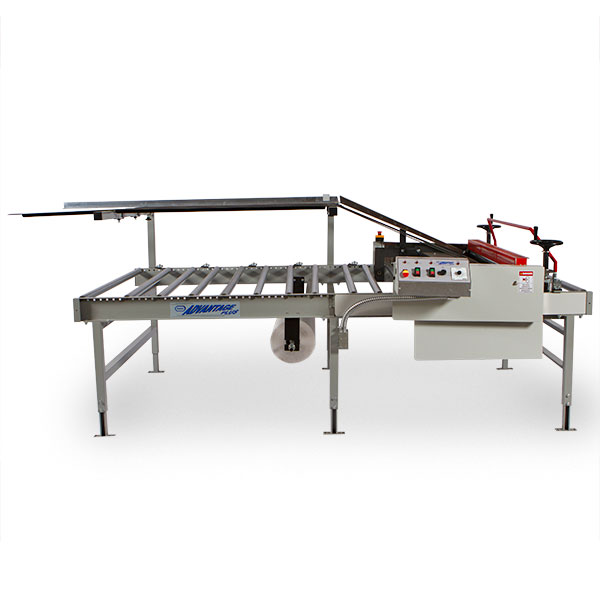

Advantage Plus can laminate flat sheets or roll stock up to 61" (155 cm) wide, including high gloss laminates, with up to 2" (5 cm) output thickness. A chrome plated roller makes cleaning easy. Hot melt film adhesive rolls are 500' (152 m) long in any width up to 65" (165 cm).
Specifications
| OWNERS MANUAL | click to download |
| DIMENSIONAL DRAWINGS | click to download |
| OUTPUT WIDTH | up to 61" (155 cm) |
| OUTPUT LENGTH | unlimited |
| OUTPUT THICKNESS | up to 2" (5 cm) |
| ROLLER HEIGHT ADJUSTMENT | two-wheel |
| DIGITAL HEIGHT INDICATOR | no |
| PRODUCTION SPEED | 6-8 feet per minute |
| WORKS WITH | flat sheets or roll stock |
| IDEAL FOR | all laminates including high-gloss finishes |
| ROLLER MATERIAL | easy to clean, durable, chrome plated steel |
| ROLL STOCK FEED ATTACHMENT | available option (more info) |
| HOT KNIFE ADHESIVE CUTTER | available option (more info) |
| INFEED & OUTFEED CONVEYORS | available option (more info) |
| MACHINE WIDTH | 83" (211 cm) |
| MACHINE LENGTH | 120" (305 cm) |
| MACHINE HEIGHT | 55" (140 cm) |
| WEIGHT | 1400 lb (635 kg) |
| HEATBANK | 10.5 kW (208v) or 11 kW (230v) |
| VOLTAGE | 208 or 230 single phase (standard) or three phase (optional upgrade) |
| AMPS | 60 amp draw + 2 cutoff |
Accessories
The optional roll stock feed attachment allows users to easily feed rolled stock laminate material (such as melamine, gator ply, fabric, etc). The unit is fitted with 3" (7.6 cm) core chucks and an air clutch which supplies consistent tension across the pay out bar.
The optional hot knife adhesive cutter is a heated arm that reaches across the width of your laminator. The operator won't need to bend over the panel to cut adhesive. Instead, a quick flick of the wrist pushes the arm through the adhesive, making a fast and clean cut.
These conveyors extend the length of the machine, making it easier to handle full size panels. Your laminating machines can be fitted with additional conveyor sections as needed. Conveyor sections are available in 5’ (152 cm) lengths and can be ordered with or without legs.
